Dual 4K 60HZ HDMI 5K 60HZ Display Port USB A Universal Type C Display Link Docking Stations

16 In 1 Docking Station use use DisplayLink technology and with USB 3.1 Gen 2 10Gbps speed. It includes dual HDMI and display ports, 6 USB ports, SD/TF 4.0 card reader slots
  • DS932
  • ALLKEI
Availability:

Product Description

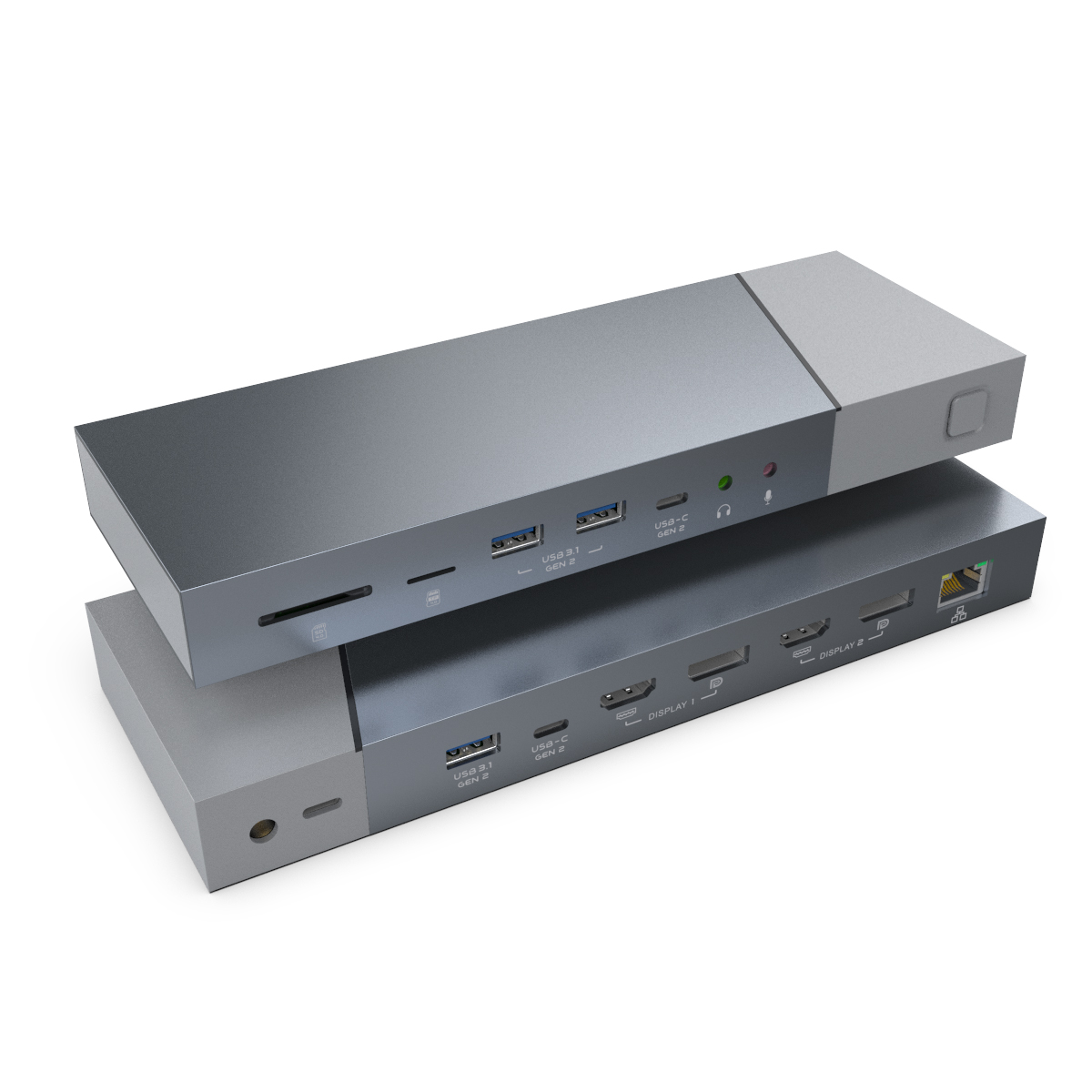

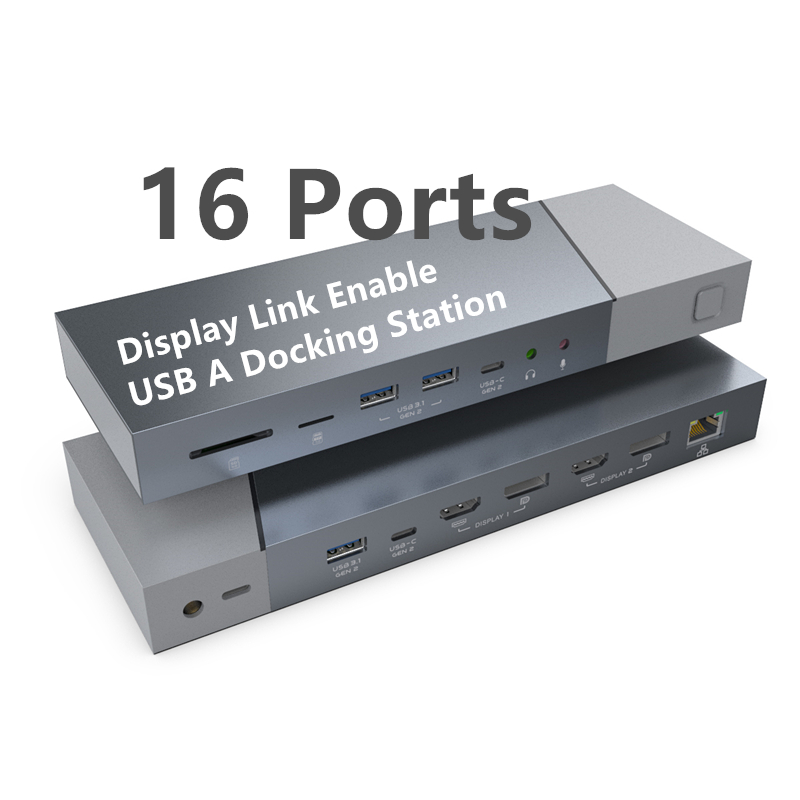

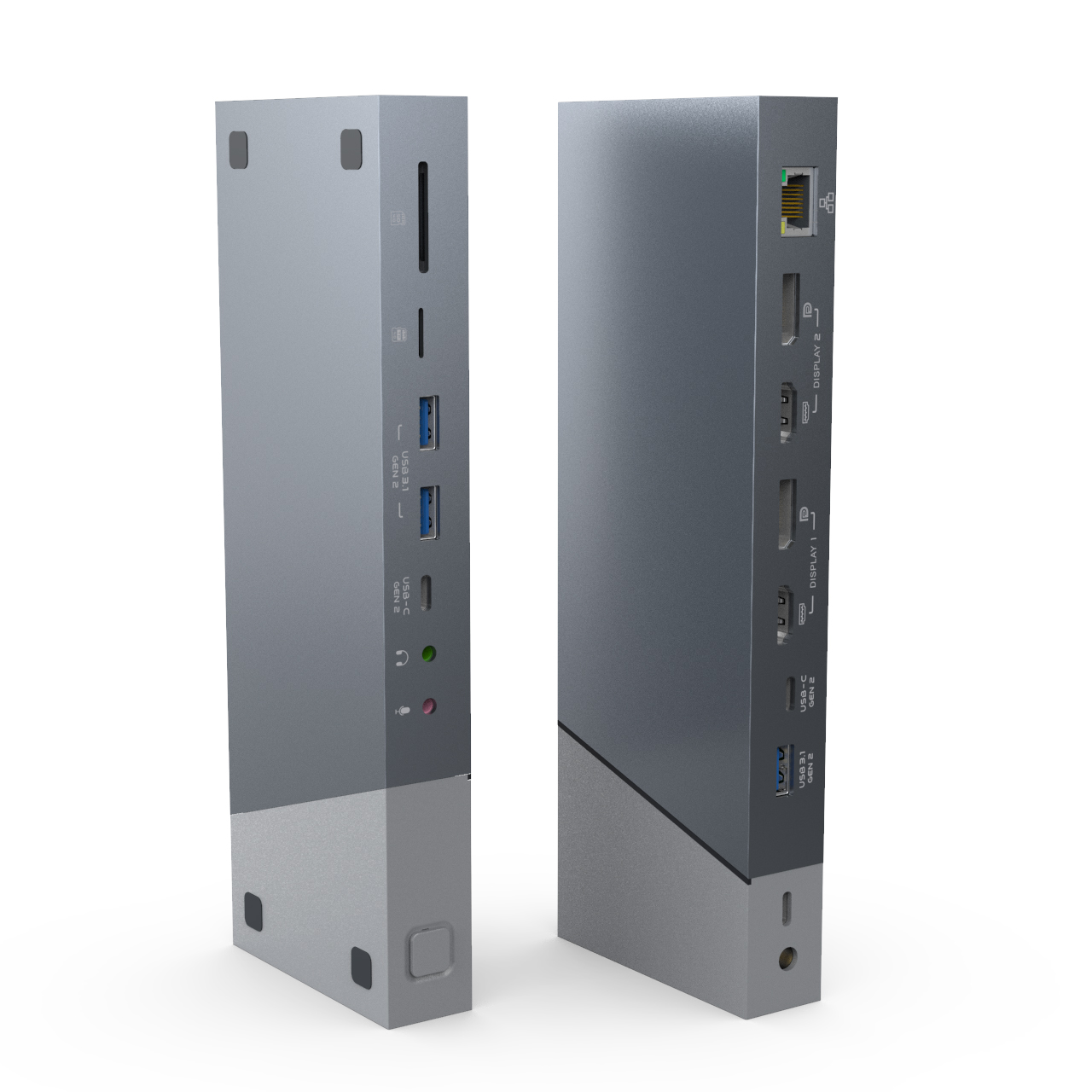

16 in 1 USB A DisplayLink Enable Docking Station

USB C Docking Station Powerful connected with multiple external devices

未标题-2_副本

Front:

1 x Mic

1 x Audio Jack

1 x USB-C 3.1 Gen 2 10Gbps

2 x USB-A 3.1 Gen 2 10Gbps

1 x TF 4.0 card reader

1 x SD 4.0 card reader


Back:

1 x  RJ 45 Ethernet 1000/100/10M

2 x Display Link (2 x DisplayPort + 2 x HDMI)

     >> 1 x DP 5k 60hz

     >> 2 x HDMI / 2 x DP / 1xHDMI+1xDP: 4k 60hz

1 x USB-C 3.1 Gen 2 10Gbps

1 x USB-A 3.1 Gen 2 10Gbps

1 x PD charger output 60W

1 x DC power port

Features

[ Display Link ]

Support DP single 5K/60HZ, dual 4K/60HZ resolution, compatible with 1080P/720P/576P/480P/ and other resolutions.


[ USB A  and Type C Ports ]

Support USB3.1 Gen2 high-speed data transmission 10Gbps, and backward compatible, plug and play, no driver required.

One Type C port supports PD 60W fast charge.


[ RJ45 LAN Port ]

 Gigabit Ethernet port supports 10/100/1000Mbps network.


[ 3.54mm Jack ]

Support 3.5mm audio port, adaptive 3 or 4 headphone and microphone devices with 3.5mm interface.


[ SD/TF Card Reader ]

SD/TF dual card slot design, can read data at the same time.


type c docking stationPlugable usb c hub usb a 3.1 displaylink docking staitonAllkei Targus Universal Displaylink Docking Station
